seals-o ring mounted

Rubber Bellows

PTFE Wedge

Rubber Diaphragm

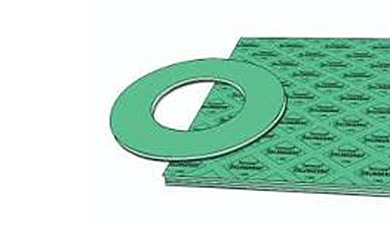

Sil C4400 Gasket

Specifications:

Manufactured from aramid fibre with a nitrile binder. A high quality, general purpose sealing material for use in many industrial applications. Excellent fluid swell and gas permeability properties.

Temperature: -100˚C to 180˚C Pressure: 60bar **

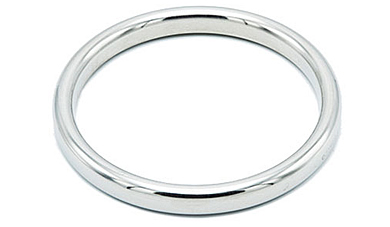

Ring Type Joint

Specifications:

Manufactured from various steels. A high integrity gasket with excellent high pressure, high temperature and chemical resistance. Used extensively in piping flanges.

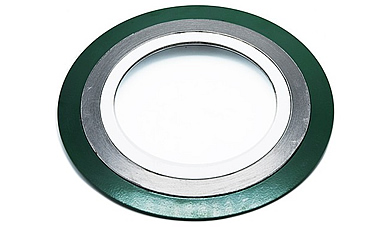

Maxiflex (Spiral)

Specifications:

A semi metallic gasket manufactured from a variety of steels and fillers. A gasket with excellent pressure, temperature and chemical resistance. Very tolerant of cyclic applications and misaligned flanges.

Maxiprofile (Kammprofile)

Specifications:

Manufactured from aramid fibre with a nitrile binder. A high quality, general purpose sealing material for use in many industrial applications. Excellent fluid swell and gas permeability properties.

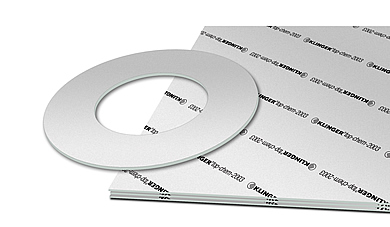

Top-chem 2003

Specifications:

Premium grade high compressibility modified PTFE. A chemically resistant sealing material for strong acid and alkali applications with low to medium mechanical requirements at low to medium temperatures.

Temperature: -196˚C to 200˚C Pressure: 62bar @ 0˚C & 0bar @ 200˚C

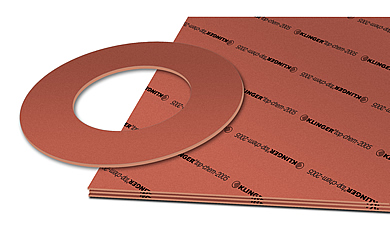

Top-chem 2005

Specifications:

Economical acid grade modified PTFE. A chemically resistant sealing material for strong acid applications with high mechanical and temperatures requirements.

Milam PSS

Specifications:

Is an asbestos free sealing material based on mica reinforced with stainless tanged insert. It is specifically designed for hot, dry gas applications up to 1000°C. However, the outstanding chemical resistance of mica makes the gasket suitable for a wide range of applications.

Sigraflex® Hochdruck

Specifications:

High integrity multilayer laminate of exfoliated graphite and 316SS. A sealing material with excellent thermal and chemical resistance. Used in chemical, petrochemical and power generation applications.

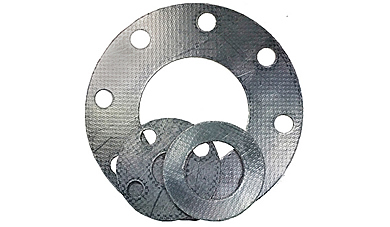

PSM

Specifications:

Pure exfoliated graphite mechanically bonded to a tanged 316SS insert. A sealing material with excellent chemical and thermal capabilities. Used in chemical, petrochemical, steam and thermal processes.

SLS

Specifications:

Pure exfoliated graphite chemically bonded to a solid 316SS insert. A sealing material with excellent chemical and thermal capabilities. Used in applications where bolt load is limited or flanges are damaged.

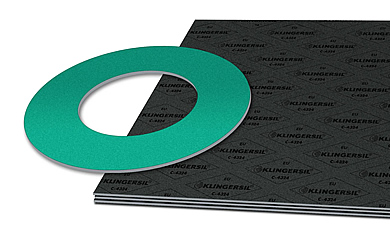

Sil C4324

Specifications:

Manufactured from aramid and glass fibre with a nitrile binder. An economical sealing material for use in general industrial applications. Resistance to oils, fuels, hydrocarbons, low pressure steam and water.

Sil C8200

Specifications:

Manufactured from a blend of fibres with an acid resistant binder. A sealing material designed for aggressive chemical environments. Resistance to acids, alkalis, ketones, aldehydes and refrigerants.

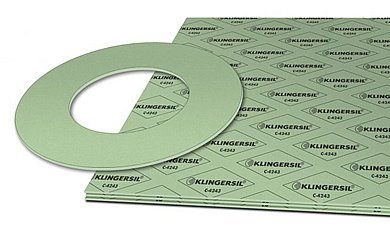

Sil C4243

Specifications:

A sealing material for general purpose applications. Suitable for liquids and gases at low pressures and temperatures. Good chemical resistance to water and oil in non-critical applications.

Sil C4500

Specifications:

manufactured from carbon fibres with a nitrile binder. A sealing material with outstanding resistance to alkaline media and steam. Resistance to oils, fuels, hydrocarbons and other chemicals.

Top-graph 2000

Specifications:

Manufactured from expanded graphite and synthetic fibres with nitrile binder. A sealing material with outstanding flexibility and excellent sealability in steam. Resistance to oils, fuels, hydrocarbons and other chemicals.

Sil C4430

Specifications:

Manufactured from synthetic and glass fibres with a nitrile binder. A sealing material with high temperature resistance in steam, oils, fuels, hydrocarbons and other chemicals. Suitable for potable water.
